COMBINATION LADDERS

Double-Sided Stairway

MAXIbrochure17092015-16

Max. Load 150 kg Spacing between rungs 270mm
ds_stairway_comboA ds_stairway_comboB ds_stairway_comboC ds_stairway_comboD
Item NO. of steps A(mm) B(mm) C(mm) D(mm) Weight(kg)
AO68-5+6 5+6 1735 1584 1205 2565 5.95

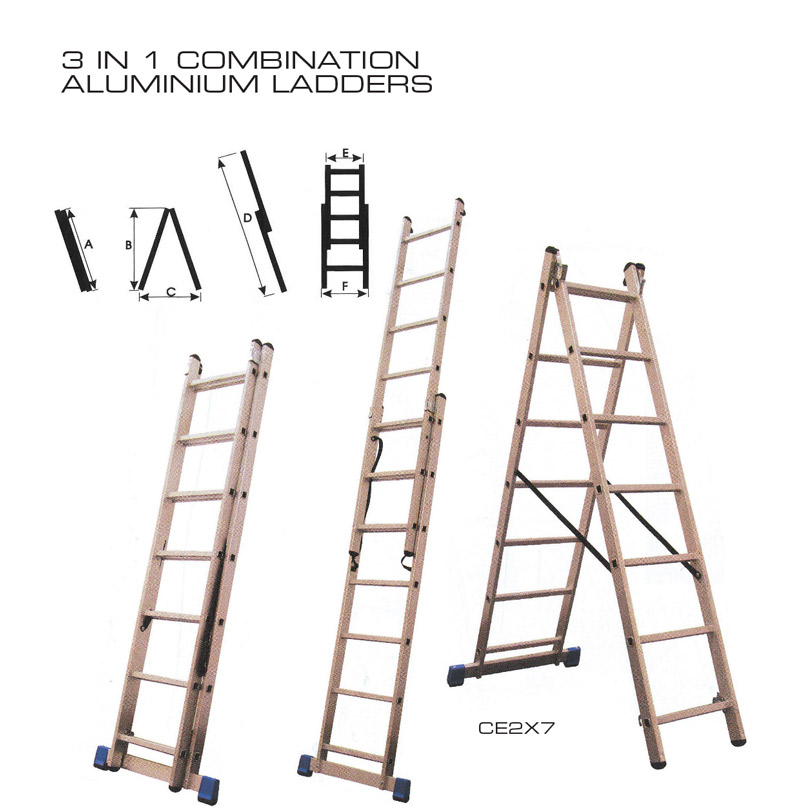

3 in 1 Combination

MAXIbrochure17092015-17

Max. Load 150 kg Spacing between rungs 280mm
Item NO. of steps A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) Weight(kg)
CE2x7 2×7 1997 1880 1358 3118 398 455 7.2
CE2x8 2×8 2270 2100 1550 3670 398 455 8.15
CE2x9 2×9 2560 2400 1740 4230 398 455 9.6
CE2x10 2×10 2840 2667 1932 4798 398 455 10.6
CE2x11 2×11 3117 2930 2124 5078 398 455 11.7
CE2x12 2×12 3390 3190 2316 5638 398 455
CE2x13 2×13 3670 3354 2508 6190 398 455
CE2x14 2×14 3950 3720 2700 6750 398 455

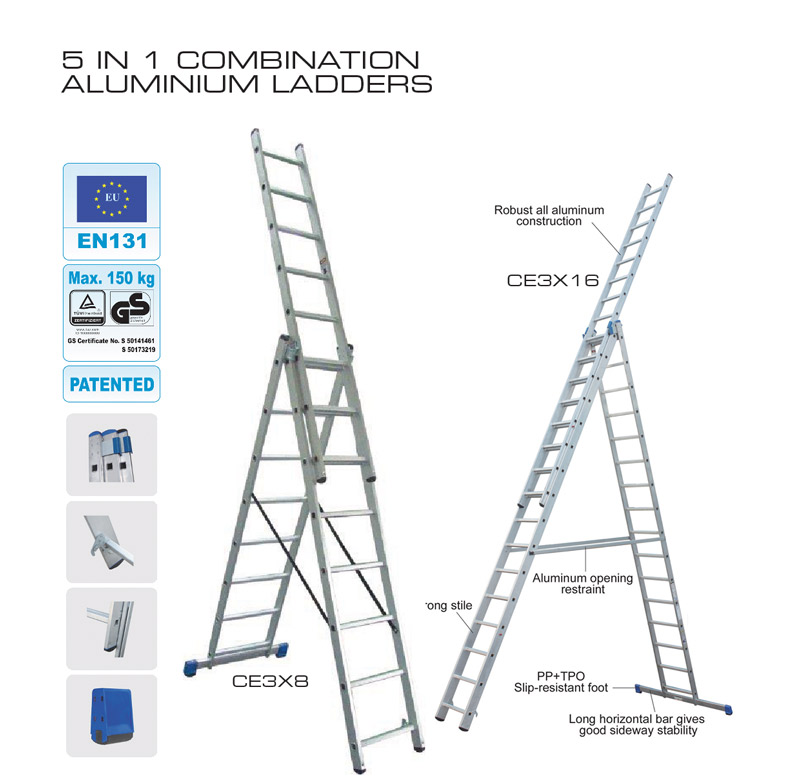

5 in 1 Combination

MAXIbrochure17092015-18

Max. Load 150 kg Spacing between rungs 280mm
5in1combo_aluA 5in1combo_aluB 5in1combo_aluC 5in1combo_aluD 5in1combo_aluE 5in1combo_aluF 5in1combo_aluG
Item NO. of Steps A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) Weight(kg)
CE3x6 3×6 1717 2426 1619 1166 2546 3397 341/398/454 9.50
CE3x7 3×7 1999 2950 1880 1358 3118 4237 341/398/454 10.65
CE3x8 3×8 2278 3479 2150 1550 3670 5078 341/398/454 12.85
CE3x9 3×9 2560 4000 2410 1740 4230 5920 341/398/454 15.50
CE3x10 3×10 2840 4270 2675 1932 4510 6480 341/398/454 16.85
CE3x11A 3×11 3120 4795 2935 2138 5070 7320 341/398/454 18.70
CE3x12 3×12 3400 5585 3200 2330 5915 8440 341/398/454 15.50
CE3x14 3×14 4000 6415 3770 2750 6803 9880 398/454/515 36.2
CE3x16 3×16 4560 7470 4295 3130 7910 11280 398/454/515 40.7

6 in 1 Combination

MAXIbrochure17092015-19

Max. Load 150 kg Spacing between rungs 280mm
6in1combo_aluA 6in1combo_aluB 6in1combo_aluC 6in1combo_aluD 6in1combo_aluE
Item NO. of steps A(mm) B(mm) C(mm) D(mm) E(mm) Weight(kg)
AO66-306 3×6 1720 2420 1620 1166 3397 9.4
AO66-307 3×7 1999 2750 1880 1358 4237 10.6
